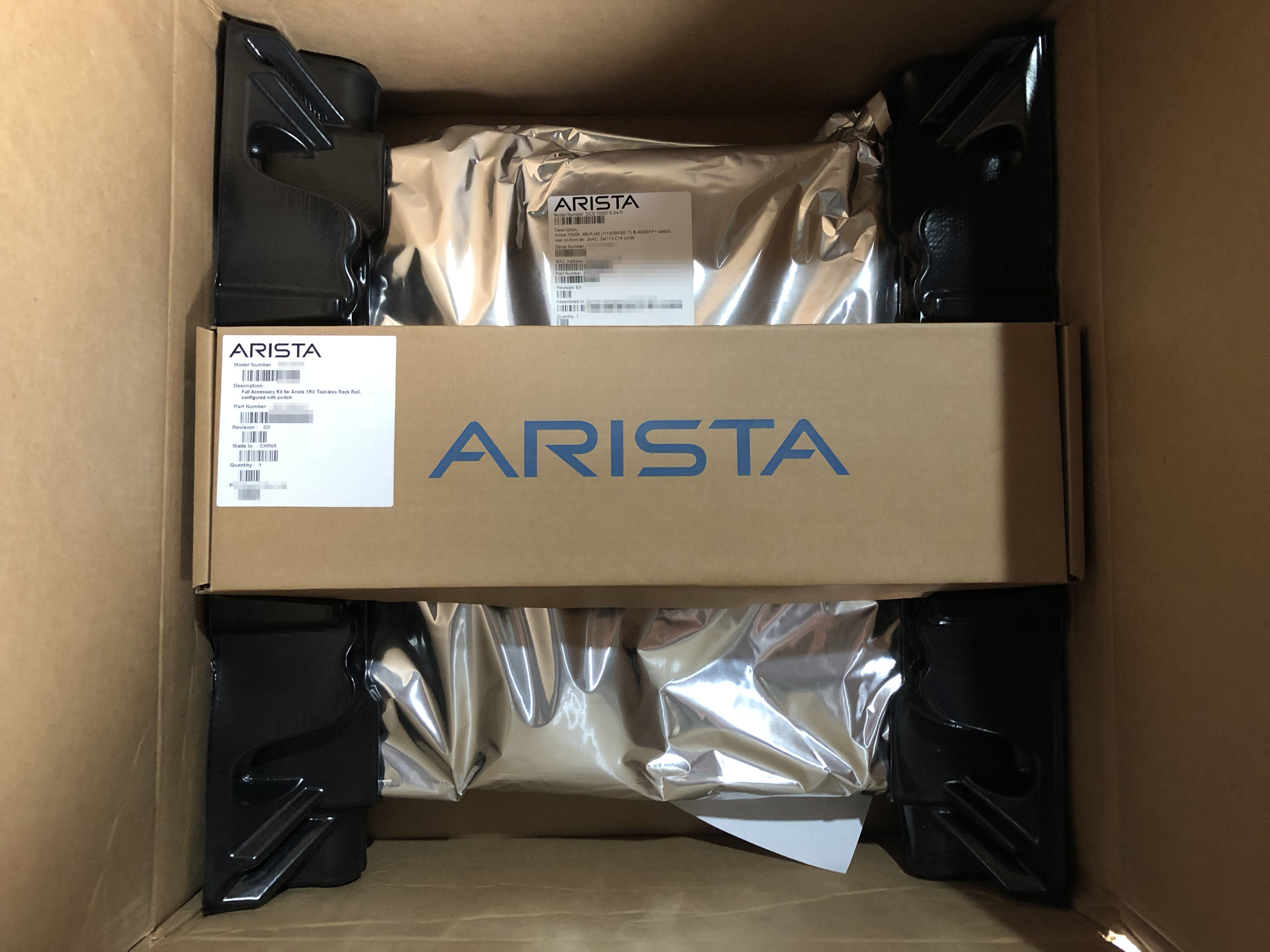

全新盒裝 Arista 交換中心等級Switch DCS-7050TX-64原 價25萬
Arista DCS-7050TX-64, 48xRJ45 (1/10GBASE-T) & 4xQSFP+(40G) switch, front-to-rear airflow and dual AC power supplies.
(保固三個月)
Performance
- 7050TX-64: 48x 1/10GbE and 4x 40GbE
- Up to 2.56 terabits per second
- Up to 1.44 billion packets per second
- Wire speed L2 and L3 forwarding
- Latency from 3 microseconds
Data Center Optimized Design
- Typical power under 5W per 10GbE port
- Over 94% efficient power supplies
- 1+1 redundant & hot-swappable power
- N+1 redundant & hot-swappable fans
- Front-to-rear or rear-to-front cooling
- Tool less rails for simple installation
Cloud Networking Ready
- VXLAN and VM Tracer
- OpenFlow, DirectFlow and eAPI
- 288K MAC entries
- 144K IPv4 Routes / 208K IPv4 Host Routes
- 12MB Dynamic Buffer Allocation
Resilient Control Plane
- Dual-core x86 CPU
- Up to 8GB DRAM
- 4GB Flash
- User applications can run in a VM
|
Built-in Solid State Storage
- 100GB Solid State Drive option (選購)
- Store logs and data captures
- Leverage linux tools with no limitations
Advanced Provisioning & Monitoring
- CloudVision
- Zero Touch Provisioning (ZTP)
- LANZ for microburst detection
- DANZ Advanced Mirroring & Tap Aggregation for improved visibility
- sFlow
- Self-configure and recover from USB
Arista Extensible Operating System
- Single binary image for all products
- Fine-grained truly modular network OS
- Stateful Fault Containment (SFC)
- Stateful Fault Repair (SFR)
- Full Access to Linux shell and tools
- Extensible platform – bash, python, C++
|
https://www.arista.com/assets/data/pdf/Datasheets/7050TX-128_48_Datasheet.pdf
https://www.arista.com/en/products/7050x-series
Arista 中文說明手冊:
Arista配置手册
在水一方中文教學:
http://note.zn2.us/eos.htm
